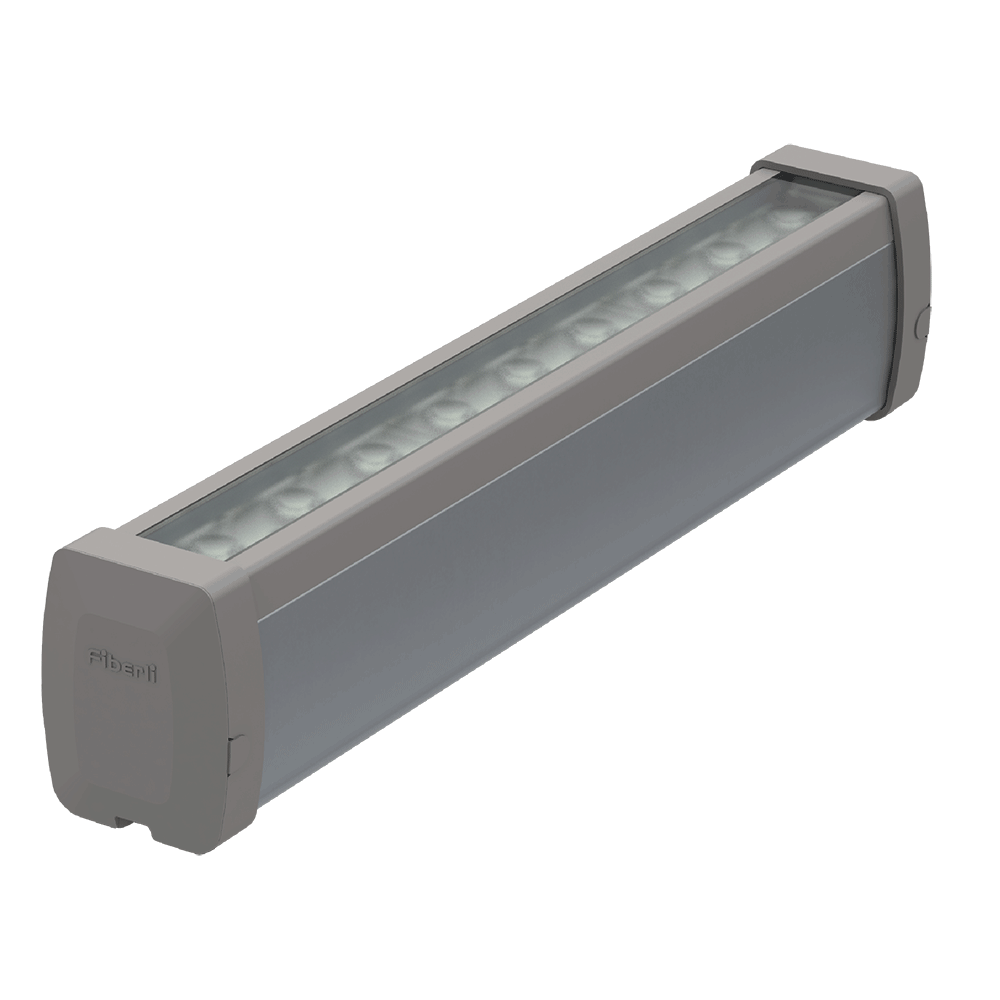

LED Projector / WL RDMX

PRODUCT & POWER OPTIONS

Product Name	Light Color	Input Voltage (V)	Power (W)	Length (L)(mm)	Product Weight (kg)
WL 109-RDMX	RGB	220-240V AC	12	380	1
WL 218-RDMX	RGB	220-240V AC	23	619	1,5
WL 327-RDMX	RGB	220-240V AC	34	909	2,4
WL 436-RDMX	RGB	220-240V AC	45	1.199	2,9
WL 112-RDMX	RGBW/A	220-240V AC	16	380	1
WL 224-RDMX	RGBW/A	220-240V AC	31	619	1,5
WL 336-RDMX	RGBW/A	220-240V AC	45	909	2,4
WL 448-RDMX	RGBW/A	220-240V AC	60	1199	2,9

ELECTROMECHANICAL SPECIFICATIONS

• Anodized aluminum extruded profile
• Stainless chrome fixture stand.
• Polycarbonate luminaire glass.
• PVC side covers with invisible gland outlet and UV protection.
• High efficiency group lens.
• IP68 air vent.
• RDMX configuration
• IP67 socket fot DATA-SIGNAlS

O
LENS OPTIONS
- XN: Extra Narrow Angle
- N: Narrow Angle
- M: Medium Angle
- W: Wide Angle
- E: Elliptical
  Angled
J
CONNECTION OPTIONS
- 01: Cable
- 02: IP Socket
K
CABLE DIRECTION OPTIONS
- 01: Single entry (LPI, BLI)
- 03: Dual entry and exit (SIO, BIO)*
*The max. junction qty may vary for the products with both entry and exit.
M
MOUNTING OPTIONS
Stand connector
- 20: Standard Stand
- 21: Standard stand/ Mounting kit
Optional Accessories
- 34: Extension piece A=5cm 35: Extension piece A=10cm 36: Extension piece A=20cm Extension pieces at any desired length are optional
Connecting Fitttings
ADDITIONAL PIECES OPTIONS
- Dual assembly
- Ternary assembly
- Quaternary assembly
- Standard Connection Scheme
- Connection Scheme with Extension Socket
- (1) DMX DATA CABLE, 33400474 : CABLE 2X0,22 KR-SY LI2Y(ST)CH TP GREY
- (2) AC SUPPLY CABLE, 3x1mm TTR
- (3) 26000xxx : SOCKET RDMX L:100/200/400/600/800/1000cm 4 PIN MALE-FEMALE DOUBLE SIDED EXTENSION IP67 (YM)
- (4) 33600755: RDMX INPUT JOINT
- (5) 33600696: RDMX TERMINATOR
ACCESSORIES
- 33400474 : CABLE 2X0,22 KR-SY LI2Y(ST)CH TP GREY
  26000122 : SOCKET RDMX L:100cm 4 PIN MALE-FEMALE DOUBLE SIDED EXTENSION IP67 (YM)
  26000150 : SOCKET RDMX L:200cm 4 PIN MALE-FEMALE DOUBLE SIDED EXTENSION IP67 (YM)
  26000151 : SOCKET RDMX L:400cm 4 PIN MALE-FEMALE DOUBLE SIDED EXTENSION IP67 (YM)
  26000152 : SOCKET RDMX L:600cm 4 PIN MALE-FEMALE DOUBLE SIDED EXTENSION IP67 (YM)
  26000153 : SOCKET RDMX L:800cm 4 PIN MALE-FEMALE DOUBLE SIDED EXTENSION IP67 (YM)
  26000154 : SOCKET RDMX L:1000cm 4 PIN MALE-FEMALE DOUBLE SIDED EXTENSION

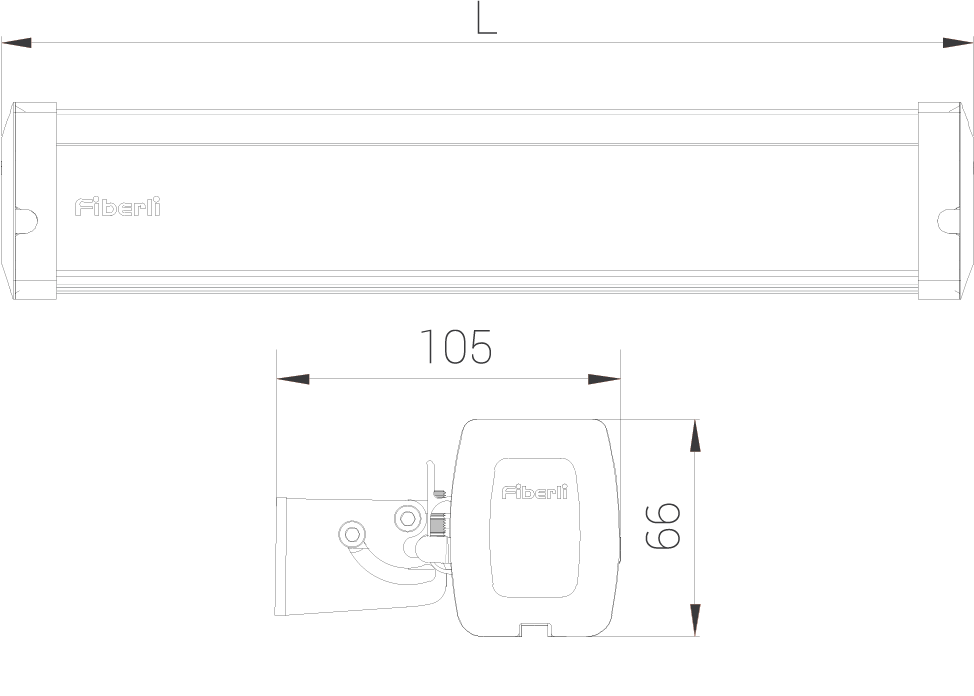

PRODUCT DIAGRAMS
