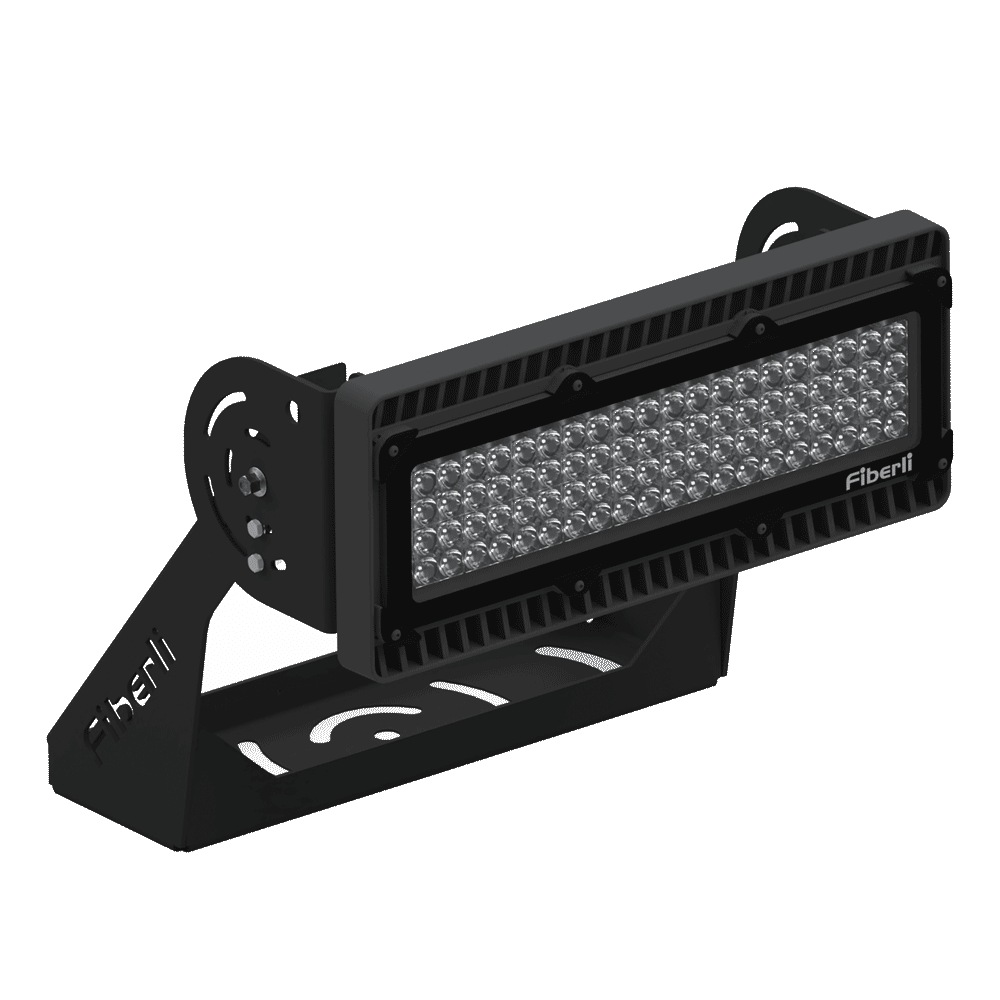

LED Projetor / SUPREME PRO

PRODUCT & POWER OPTIONS

Product Name	Light Color	Input Voltage (V)	Power (W)	Product Weight (kg)
SUPREME-PRO-I	WW-NW-CW	220-240V AC	440	30
SUPREME-PRO-II	WW-NW-CW	220-240V AC	880	42
SUPREME-PRO-III	WW-NW-CW	220-240V AC	1320	55
SUPREME-PRO -I-DMX	RGBW	220-240V AC	360	30
SUPREME-PRO -II-DMX	RGBW	220-240V AC	720	42
SUPREME-PRO -III-DMX	RGBW	220-240V AC	1080	55

*Power and Lumen values provided are based off of a “natural white (NW) LED”.

ELECTROMECHANICAL SPECIFICATIONS

• Superior performance with 172,000 lumens
• High cooling capacity body design
• Ultra-narrow 10° optical output
• Safe connection with IP67 socket
• MultiColor technology

LIGHT COLOR OPTIONS

WW:Warm White	3000K	RGBW
NW:Natural White	4000K
CW:Cold White	6500K

S
DRIVER OPTIONS
- 01: Standart (ON/OFF)
- 06: DALI Driver
O
LENS OPTIONS
- XN: Extra Narrow Angle
- N: Narrow Angle
- M: Medium Angle
- W: Wide Angle
- XW: Without lens
G
HOUSING COLOR OPTIONS
- RAL9005
- RAL9016
- RAL9007
- RAL7016
ADDITIONAL PIECE OPTIONS

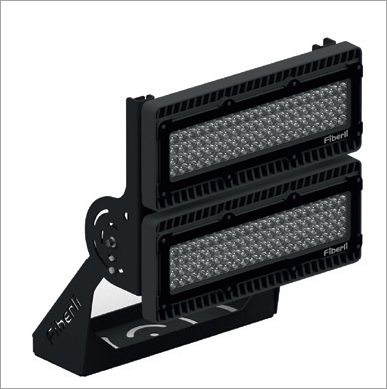

- Dual assembly

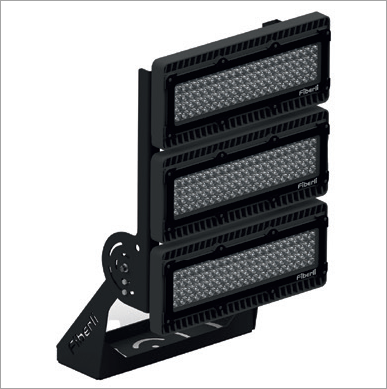

- Triple assembly
