A better way to see!
| Specification | Parameter | Explanation |
| Electrical | Input Voltage | 85~265 VAC |
| Input Voltage Frequency | 47~63 Hz | |
| Power Input Socket | Standard 3-pin 250V 10A IEC C14 Soket | |
| Power Consumption | 2.4W | |
| Functional | Data Input Signal | Art-Net (TM) |
| Data Input Socket | RJ45 | |
| Ethernet Speed | 10/100 MBit/s | |
| Ethernet Features | Auto-Neg.,Auto-MDIX | |
| Data Output Signal | DMX512 | |
| Data Output Socket | 3-Pin Female XLR Socket | |
| Data Output Ports | 8 | |
| Total DMX Channels | 4096 | |
| Physical | Rack Size | 19inç X 1U |
| Dimensions | 479.4mm X 110.8mm X 45mm | |
| Operating temperature | -10°C ~ 60°C | |
| IP Class | IP20 |
• Art-Net ™ input signal
• 8-PORT DMX512 output signal
• High speed ARM processor
• Web configuration interface
• Perfect compatibility with all protocol compliant software
• Durable 1U Rack Case
• 100Mbit/s Ethernet speed
• Quick start
• Short circuit and ESD protection on output ports
• Data/Link status information lights
• Universal input voltage range (85~265VAC)
• Short-term plug and unplug of Ethernet cables while it is in operation (Hot plug)
• Plug and play operation without initial reconfiguration

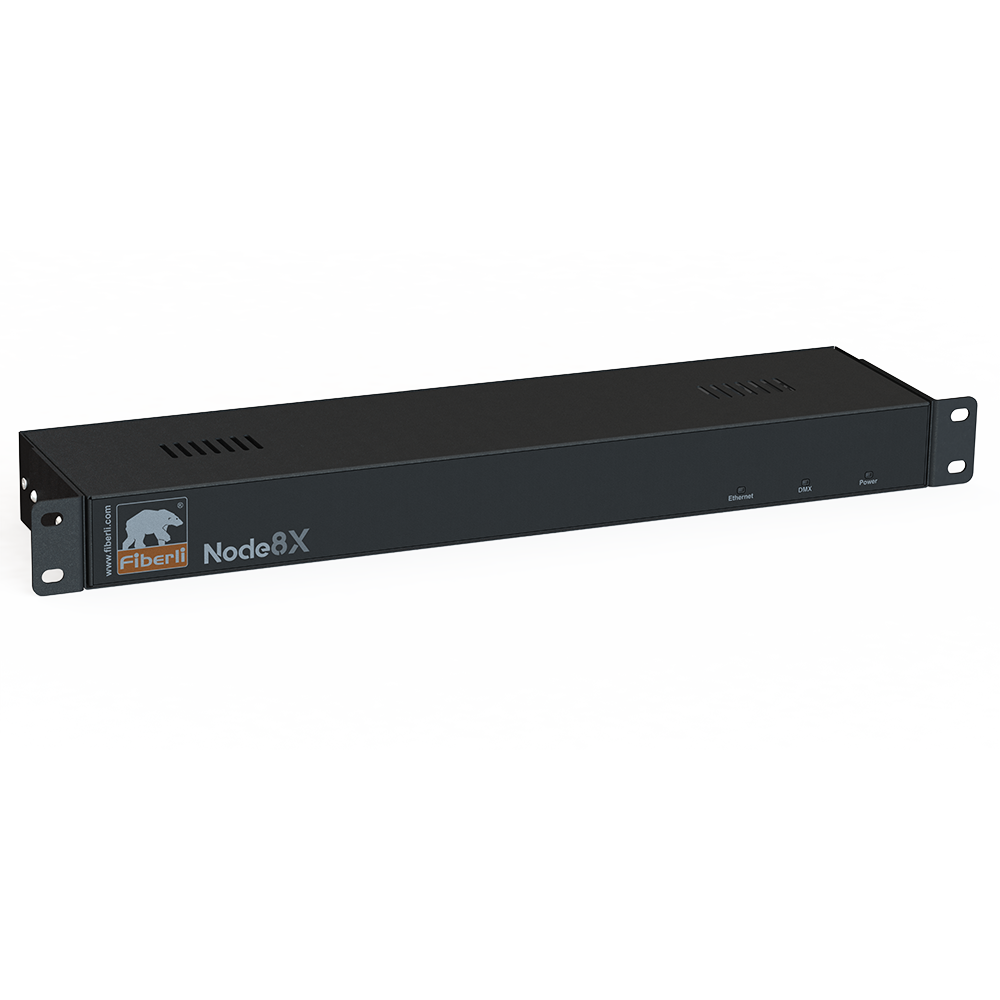

Fiberli Node8X is a DMX512-Ethernet interface device. Converts Art-Net ™ packets over the network into suitable DMX512 data. Its power comes from the ARM architecture, high-speed processor. Provides stable and reliable operation. Via the web configuration interface, settings such as IP address, port numbers can be easily changed and the current status can be displayed. Compatible with all control software that supports the commonly used Art-Net ™ protocol
