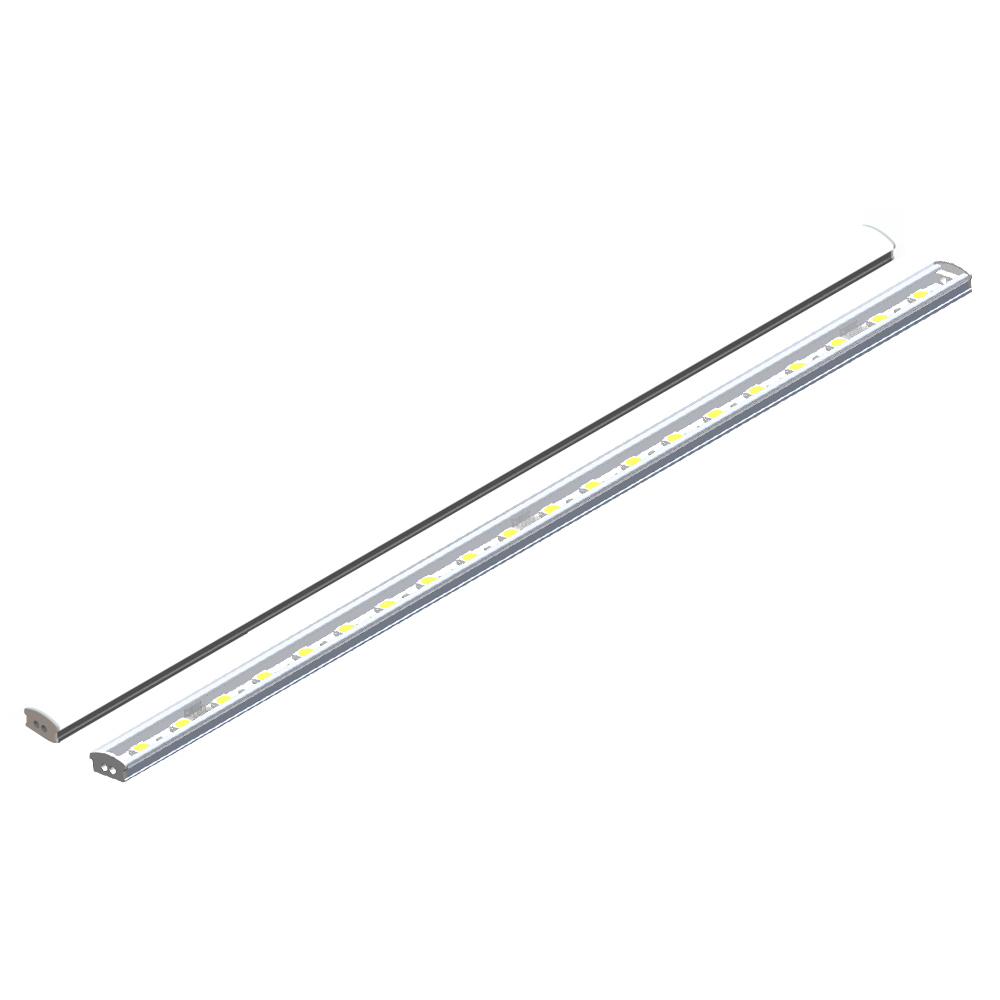

LEDLine / LLFS8

PRODUCT & POWER OPTIONS

Product Name	Light Color	Input Voltage (V)	Power (W)	Luminous Flux (lm)	Product Weight (kg)
LLFS860LED	WW-NW-CW	24V DC	4,8	597	0,1
LLFS860LED	WW-NW-CW	24V DC	7,2	881	0,1
LLFS860LED**	WW-NW-CW	24V DC	14,4	1.572	0,1

*Power and Lumen values provided are based off of a coverless product with cold white (CW) LED.
** Produced with Power LED.

ELECTROMECHANICAL SPECIFICATIONS

• Min. 20 micron anodized aluminum extruded profile
• Stainless connectors
• PVC end caps with UV protection
• Transparent or diffused polycarbonate top cover with UV protection
• Cooling capacity up to 36 W/m
• Suitable for surface mounting

LIGHT COLOR OPTIONS

WW:Warm White	3000K	R:Red	625nm
NW:Natural White	4000K	G:Green	525nm
CW:Cold White	6500K	B:Blue	465nm
		A:Amber	590nm

J
CONNECTIONS OPTIONS
- 01: Cable
  (side output)
- 02: IP20 Socket
  (side output)
U
UPPER COVER OPTIONS
- 0: Coverless
  (IP20)
- 01: Diffused
  (IP40)
- 02: Transparent
  (IP40)
I
IP PROTECTION CLASS
M
MOUNTING OPTIONS
- 01: Steel Clip
- 02: Double-Sided Tape
