LEDPixel / DOT DIAMOND

*Power and Lumen values provided are based off of “cold white (CW) LED".

RGBW

•
  DDU: Diffused
•
  DSF: Transparent

•
  14: Screw Mount
•
  02: Surface mount with adhesive

Color Type		PWM	INW PWM	DMX	DALI	0 - 10V DC	TRIAC
RGB DMX

33600991: Dot Diamond Mini Buat
33600992: Dot Diamond Midi Buat

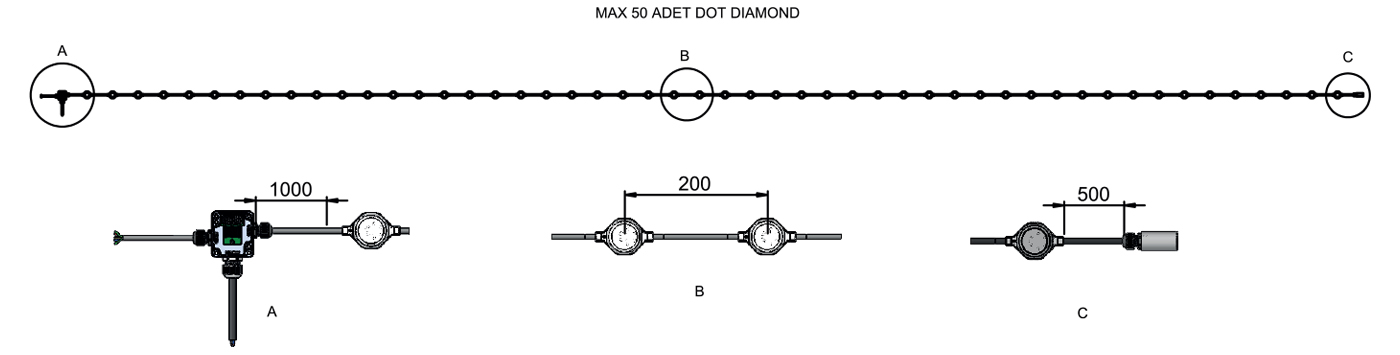

Standard Connection Scheme
A
• As a DMX data ve power cable:
33400617 CABLE 1x2x0,22mm+1x2x0,75mm+1x0,22mm BLACK
It is the entry point for both data and power
B
• The distance between pixels can be 20, 50, 60cm
C
• The last product in the chain should be equipped with an end connector.
33600993 DOT DIAMOND
