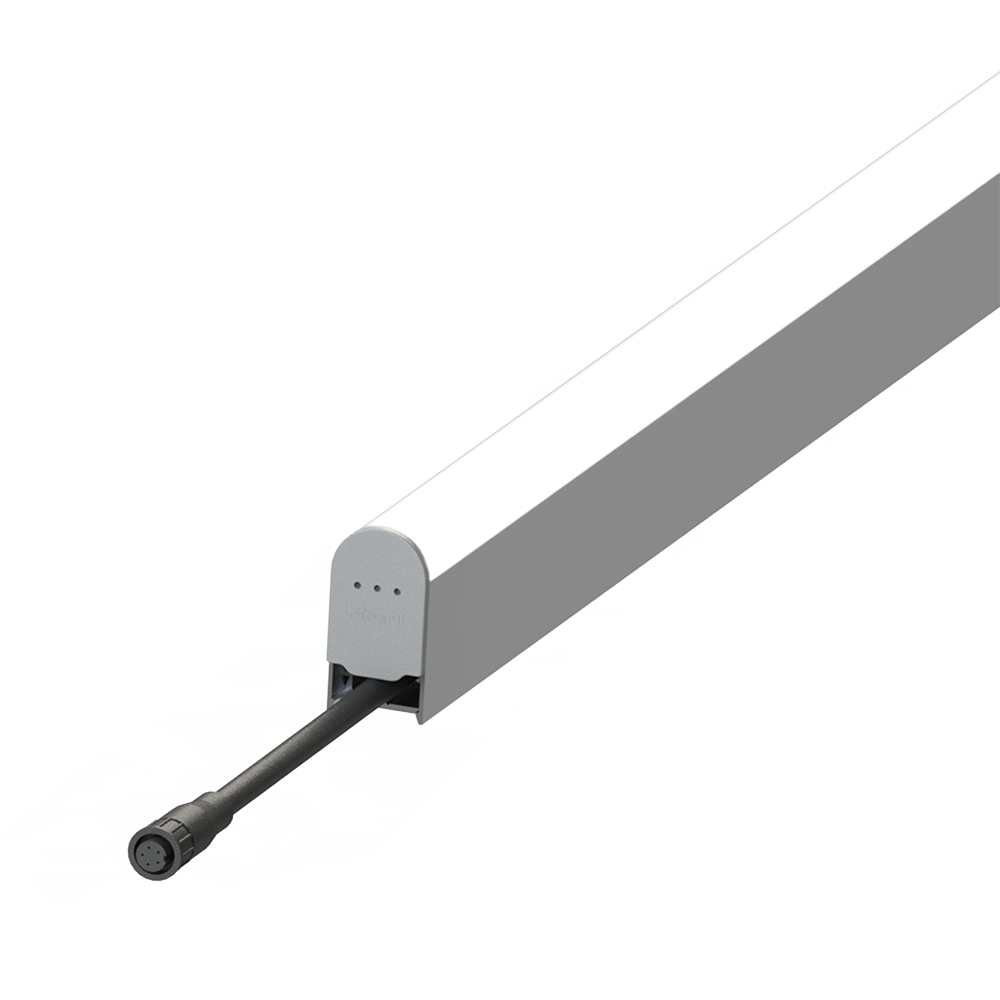

LEDLine / C-Line-28

PRODUCT & POWER OPTIONS

Product Name	Light Color	Input Voltage (V)	Power (W)	Luminous Flux (lm)	LED Quantity LED/mt	Piksel Count	Length (L) (mm)
C-LINE-28-MONO	WW-NW-CW	48V DC	1,4	102	60	-	205
C-LINE-28-MONO	WW-NW-CW	48V DC	4,2	306	60	-	605
C-LINE-28-MONO	WW-NW-CW	48V DC	8,4	613	60	-	1205
C-LINE-28-RGB	RGB	48V DC	1,4	-	30	1	205
C-LINE-28-RGB	RGB	48V DC	1,4	-	60	2	205
C-LINE-28-RGB	RGB	48V DC	4,2	-	30	3	605
C-LINE-28-RGB	RGB	48V DC	4,2	-	60	6	605
C-LINE-28-RGB	RGB	48V DC	8,4	-	30	6	1205
C-LINE-28-RGB	RGB	48V DC	8,4	-	60	12	1205
C-LINE-28-RGBW	RGBW	48V DC	1,8	-	30	1	205
C-LINE-28-RGBW	RGBW	48V DC	1,8	-	60	2	205
C-LINE-28-RGBW	RGBW	48V DC	5,4	-	30	3	605
C-LINE-28-RGBW	RGBW	48V DC	5,4	-	60	6	605
C-LINE-28-RGBW	RGBW	48V DC	10,8	-	30	6	1205
C-LINE-28-RGBW	RGBW	48V DC	10,8	-	60	12	1205

*Power and Lumen values provided are based off of a “cold white (CW) LED”.

ELECTROMECHANICAL SPECIFICATIONS

• Thanks to Balanced HV Technology, it eliminates the necessity for feedback, ensuring effortless project design and time savings
• True Color provides original colors throughout the entire project
• The Lock & Light System, with its socketed connection structure, withstands all challenging conditions.
