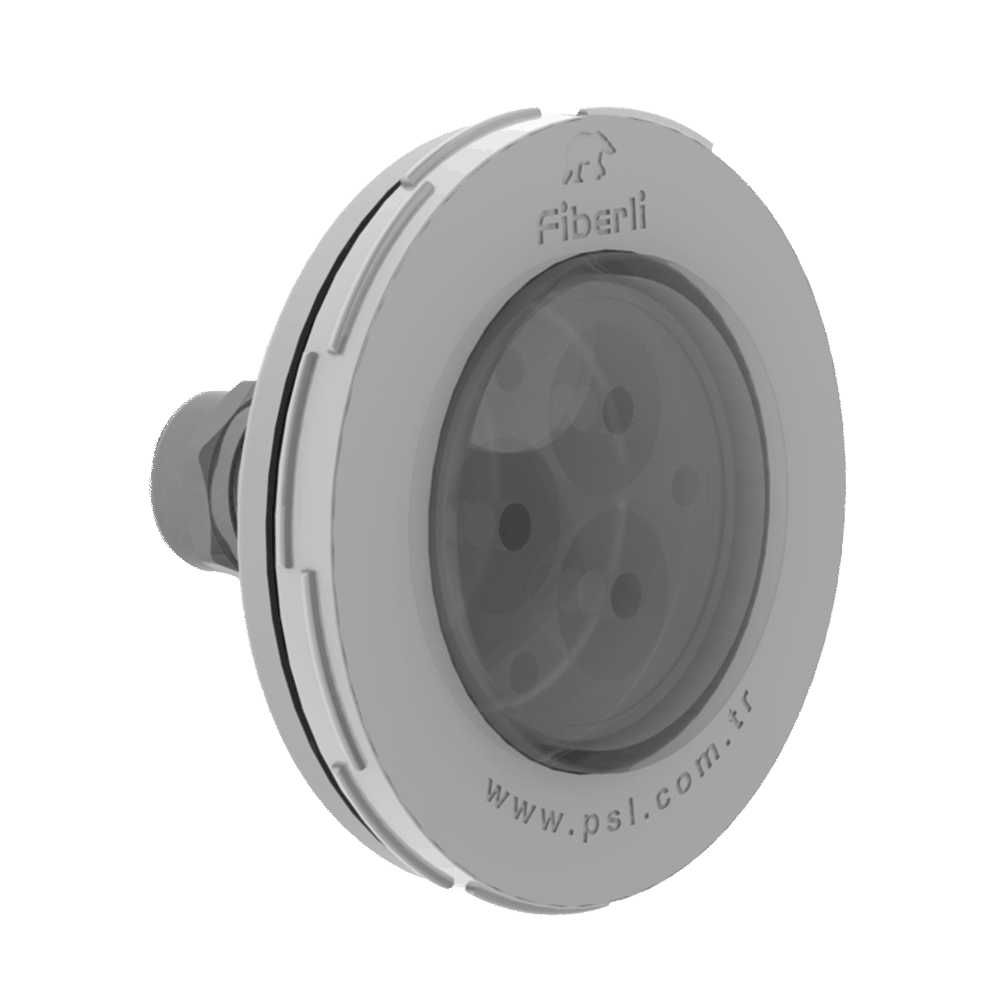

Pool Lighting / AC1J

  • P
  • W
  • C
  • S
  • O
  • P

    PRODUCT & POWER OPTIONS

    Product Name Light Color Input Voltage (V) Power (W) Luminous Flux (lm) Dimensions Product Weight (kg)
    AC1J03 WW-NW-CW 12-24V DC 4 410 163x80 1,1
    AC1J03 WW-NW-CW 12-24V DC 8 820 163x80 1,1
    AC1J03 RGB 7,5V DC 8 - 163x80 1,1

    **Power and Lumen values provided are based off of a lensless product with cold white (CW) LED. It may vary according to the desired color.

    ELECTROMECHANICAL SPECIFICATIONS

    • Corrosion protection by double layered electrostatic powder coated body
    • 8 mm tempered glass
    • Stainless connecters
    • Plastic injection mounting box (optional)
    • Operates with alternate or direct current
    • Underwater connector
    • H07RNF rubber cable

  • C

    LIGHT COLOR OPTIONS

    WW:Warm White 3000K R:Red 625nm
    NW:Natural White 4000K G:Green 525nm
    CW:Cold White 6500K B:Blue 465nm
    RGB A:Amber 590nm
  • S

    SYSTEM OPTIONS

    • 01: Standart (ON/OFF)
    • 02: PWM-DIM
  • O

    LENS OPTIONS

    • XN: Extra Narrow Angle
    • N: Narrow Angle
    • XW: Without lens
  • -

    ACCESSORIES

  • CONTROL SYSTEM OPTIONS

    Color Type PWM INW PWM DMX DALI 0 - 10V DC TRIAC
    WW-NW-CW
    R,G,B,A
    RGB
    RGBA/W
    RGB DMX
    WHITE DMX


    Product Code Voltage (V DC) Control Systems Cable Core Quantity
    Mono RGB RGB W/A
    AC1J03 7,5 PWM - 4x -
    12 PWM 2x - -
    12-24 ON/OFF 2x - -
  •  PRODUCT DIAGRAMS
    AC1J AC1J
